Frontend
React SPA
Login, marketplace, inventory, and admin routes
Technical overviewFull-stack application architecture
ShiftLane
An authenticated marketplace connecting a React interface to a layered Java API.
- Role
- Solo developer across React, Spring Boot, security, relational data, containers, and cloud deployment
- Evidence status
- Architecture reviewed from source; historical deployment documented; current runtime not reverified
- Verified
- 2026-07-23
01
Purpose and scope
ShiftLane is a peer-to-peer car marketplace where users create accounts, manage vehicle listings, buy from other users, and administer inventory. React handles the customer workflow while a Spring Boot API applies authentication, business rules, and relational persistence.
What it is used for
- Create an account and authenticate before accessing marketplace operations.
- Add, update, list, unlist, buy, and remove vehicles tied to user ownership.
- Give administrators visibility into users and listed inventory.
02
Architecture
User interface
HTTP client
Axios client
Attaches bearer tokens and maps API operations
HTTPS · JWT
API and security
Security boundary
Spring Security
RSA JWT validation, BCrypt, roles, and CORS
API
REST controllers
Accounts, cars, listings, purchases, and funds
Delegates
Domain and persistence
Business logic
Domain services
Ownership, listing, purchase, and account rules
Data access
JPA repositories
Entity mapping and relational queries
Database
MySQL
Users, roles, balances, vehicles, and ownership
Packaged in
Deployment boundary
Orchestration
Docker Compose
Frontend, API, and MySQL on one network
Cloud
Cloud VM
Historical GCP and Azure deployments
03
Engineering decisions
Stateless token boundary
Spring Security validates RSA-backed JWTs and BCrypt protects stored passwords, keeping API authorization independent of server sessions.
Layered domain logic
Controllers delegate ownership, account, and vehicle operations to services and JPA repositories rather than coupling HTTP handlers directly to the database.
One reproducible stack
Docker Compose connects the React client, Java API, and MySQL database on one network for local and VM-based deployment.
04
Verification evidence
- Source inspection confirmed React API calls for authentication, vehicle CRUD, listing, purchase, account funds, and administration.
- The backend contains controller, service, repository, entity, security, and persistence layers.
- The repository documents historical Docker Compose deployment on Google Cloud and a later Azure deployment.

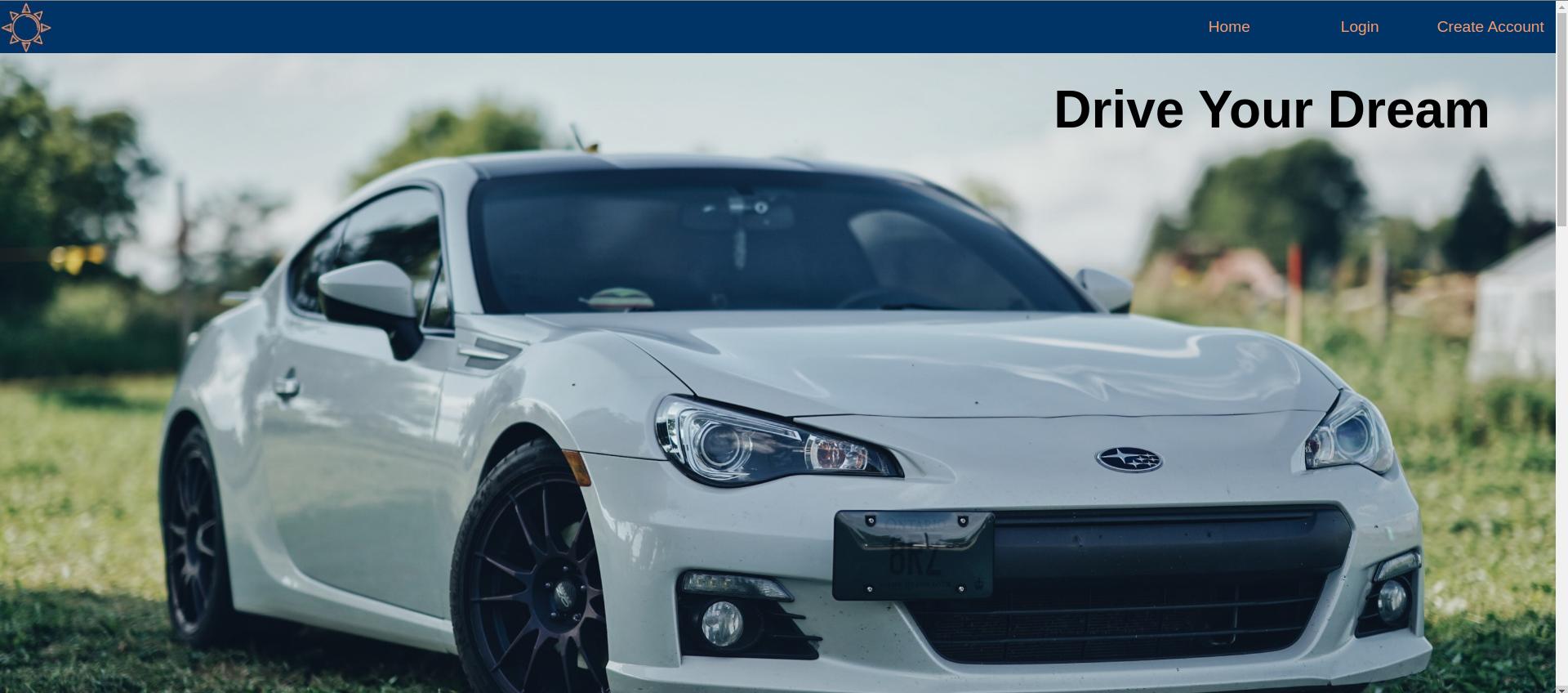

- Repository screenshots preserve the home, login, and earlier interface states.
$ React client -> authenticated API request
Spring Security -> JWT validation
Controller -> service -> JPA repository
Docker Compose: frontend + API + MySQL
△ current deployment not reverified05
Demonstrated workflow
06
Limitations
- The former cloud deployment is historical and is not presented as a live public demo.
- The current security configuration permits every CORS origin and the repository includes demonstration credentials; both must be replaced before redeployment.
- Automated coverage is limited, and the full React, API, and database workflow was not rerun for this portfolio release.
